Quick Answer: How High Should Exterior Wall Sconces Be Mounted?
There is no single universal mounting height that applies to every home. The right position for an exterior wall sconce depends on factors specific to your house, your fixture, and your installation conditions: door height and trim, fixture dimensions, junction-box location, available wall area, porch roof or ceiling, nearby windows and sidelights, garage-door height and movement, viewing angle, required clearances, published location rating, and the manufacturer's instructions.
Published design guidance can inform your planning, but none of it replaces a careful look at your specific wall, fixture, and conditions.
Before choosing a height, work through this sequence:
- Measure the door or garage opening — height and width.
- Measure the available wall area beside and above the opening.
- Record the fixture's overall height, width, and projection from the wall.
- Locate the existing junction box and note its center position.
- Check door swing, storm-door swing, or garage-door movement through its full arc.
- Check eaves, soffits, trim, transom windows, sidelights, and house numbers.
- Verify the fixture's published damp or wet location rating against actual exposure conditions.
- Review the fixture's footprint from normal approach sightlines before committing to a position.
How to Measure Before Choosing a Height
Choosing a mounting height without measuring first is the most common planning mistake.
- Door height — from finished floor or threshold to the top of the door slab.
- Trim and transom height — from floor to the top of the head casing or transom window. This is often the visual top of the entry, not the door itself.
- Available wall width — the usable wall space beside the door, between the door trim and the nearest obstruction.
- Junction-box center height — the most important single measurement; it determines where the fixture can be mounted without additional electrical work.
- Fixture overall height, width, projection, and backplate dimensions — from the manufacturer's published specifications.
- Distance from proposed fixture position to door edge — compare with door swing arc and fixture projection.
- Distance from proposed fixture position to eave or soffit.
- Garage-door moving envelope — the full arc of the door panel and hardware when operating, not only when closed.
Fixture centerline alone is not enough. A 20-inch-tall sconce and a 10-inch-tall sconce mounted on the same centerline occupy very different portions of the wall. Always calculate where the top and bottom edges of the fixture will land, not only the centerline.
Use the Fixture Footprint, Not Just the Centerline
When planning placement, think in terms of the fixture's complete wall footprint:
- Top edge — centerline plus half the fixture height.
- Bottom edge — centerline minus half the fixture height.
- Left and right width — how far the fixture extends horizontally from its mounting point.
- Projection from wall — how far the fixture body extends outward, which affects door clearance and walkway clearance.
- Backplate position — must fully cover the junction box.
Practical technique: Use painter's tape or a cardboard template cut to the fixture's published dimensions to mark the fixture's actual footprint on the wall before installation. Walk back to the street, the driveway, and the front walk and look at the tape outline from each angle. This is a planning step, not an electrical installation step.

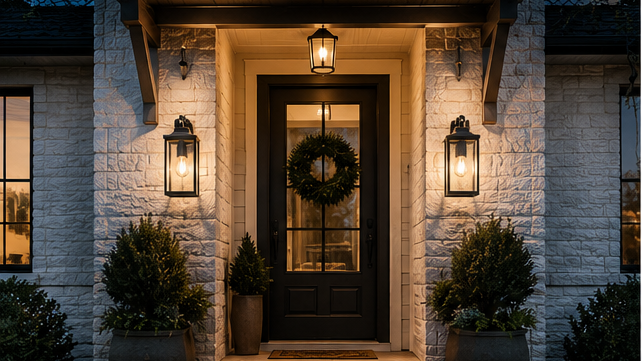

Exterior Sconce Height Beside a Front Door
Placing a wall sconce beside a front door involves more than picking a number. The fixture's centerline is often used as a reference point, but where that centerline lands depends on several overlapping factors.
Door trim and transom. Trim adds to the effective visual height of the opening. Measure to the top of the trim or transom, not only to the top of the door. A sconce that reads well beside a plain door may look misaligned beside a door with a wide transom.
Sidelights. Narrow windows flanking the door reduce available wall width. A fixture that crowds a sidelight will look confined regardless of its height.
House numbers and door hardware. House numbers occupy space that a fixture cannot share. Check their position before finalizing fixture placement.
Storm doors and outward-swinging doors. Measure the door's full swing arc and compare it to the fixture's projection before installation.
Narrow wall sections. Fixture width and projection may be more constraining than height in tight spaces.
Sightlines. Check how the fixture reads from the street, from the driveway, from the front walk, and from the doorway itself.
For interior wall sconce placement, see the Wall Sconce Height Guide: Bedroom, Hallway & Living Room Placement.
One Sconce or Two Beside the Front Door?
Whether to use one fixture or two is a question of architecture, wall space, and visual balance — not a fixed rule.
| Entry Condition | Often Worth Considering |
|---|---|
| Symmetrical entry with equal wall space on both sides | Two matching fixtures |
| Narrow entry or limited wall width on one or both sides | One fixture on the wider side |
| Off-center door or asymmetric facade | One fixture; two may emphasize asymmetry |
| Sidelights flanking the door | Check available wall width carefully before adding two |
| Only one existing electrical location | One fixture; adding a second requires additional electrical work |
Two fixtures are not always the better choice. Check the fixture's width and projection against the available wall space — not just height — before deciding.
Porch Wall Light Placement
Roof and ceiling height. A low porch ceiling compresses the available mounting range. Measure from the porch floor to the ceiling or roof structure before selecting a fixture height.
Columns. Measure the wall section between the door trim and the column face.
Railings and furniture. Consider the fixture's light direction and shade geometry relative to where people sit or stand on the porch.
Walking path. Check the fixture's projection against the usable path width.
Door swing and storm doors. Measure the swing arc and compare it to the fixture's projection and position.
Wind-driven rain. A covered porch does not automatically protect a fixture from moisture. Wind-driven rain can reach fixtures that are technically under a roof.
A covered porch does not automatically make a fixture suitable for outdoor use. Verify the published location rating before purchasing or installing.
Garage Wall Light Height
Garage wall light placement involves more variables than a single door entry. Fixtures may be placed beside each door, between two doors, above the doors, or in combination.
Beside garage doors. Check available wall width between the door trim and the nearest obstruction before selecting a fixture size.
Between two doors. A small fixture on a large expanse of wall between two wide doors can look undersized. Measure the wall section and compare it to the fixture's published dimensions.
Above garage doors. A fixture mounted above a garage door must clear the door panel, the track, and any hardware when the door is in motion — not only when it is closed. Check the garage door in motion, not only when closed. The moving envelope of the door and its hardware may extend significantly beyond the closed position.
Eaves and soffits. A fixture too close to an eave may be difficult to access for relamping and may be subject to moisture from roof runoff.
Driveway sightlines. Fixture geometry affects how well the fixture illuminates the driveway approach. Consider the fixture's light direction relative to the driveway when selecting a position.
There is no formula that maps garage-door dimensions to a specific fixture mounting height. Architecture, fixture dimensions, eave height, door-movement clearance, and driveway conditions all affect the right position for your specific garage.
Special Architectural Conditions
Transom windows. A transom raises the visual top of the entry. Measure to the top of the transom and plan fixture placement accordingly.
Very tall entry doors. A fixture sized for a standard door may look small beside an 8-foot or taller door. Check fixture height against door height before purchasing.
Narrow wall returns. Fixture width and projection may be more constraining than height. A fixture that fits vertically may not fit horizontally.
Deep roof overhangs. A deep overhang can limit how high a fixture can be mounted and may affect moisture exposure.
Low porch ceilings. Measure from the porch floor to the ceiling before selecting a fixture.
Stone or brick facades. The junction-box location in a masonry wall is fixed; repositioning it involves additional work. Verify the existing box location before selecting a fixture position.
Uneven wall surfaces. Stone, brick, or textured stucco can create gaps between the fixture backplate and the wall surface. Check the manufacturer's installation instructions for guidance.
Multiple garage bays. Fixture placement and sizing decisions that work for a single bay may not scale proportionally. Consider the full wall width and the spacing between fixtures.
Height Is Only Part of the Decision: Fixture Footprint and Visual Weight
Mounting height is one variable in exterior wall light placement. Width, projection, and backplate size all affect visual weight. Work from the fixture's published dimensions and use those numbers to check the fixture's footprint on the wall before committing to a position.
For help with fixture selection, the How to Choose a Woven Wall Sconce: Shade, Light & Room Guide covers dimensions and visual scale in more detail.
Check Projection and Clearance
Width and height alone are not sufficient. Fixture projection — how far the fixture body extends from the wall — must also be checked before finalizing any position.
Door swing and projection. An outward-swinging door can strike a fixture that projects too far from the wall. Storm doors add an additional swing arc that must be checked separately.
Narrow walkways. Check the usable path width against the fixture's projection.
Shutters. A fixture that clears the wall surface may still conflict with a shutter in its open position.
Garage-door movement. The door panel, track, and hardware all need to clear the fixture when the door operates. Check the full moving envelope, not only the closed position.
Low roofs and eaves. Check vertical clearance between the proposed fixture top and the eave or soffit.
Manufacturer clearances. Follow the fixture's installation instructions for required clearances. If any check reveals a conflict, adjust the position or reconsider the fixture before proceeding.
How to Preview Placement Before Installation
- Mark the proposed junction-box or fixture center on the wall with a small piece of tape.
- Tape the fixture's height and width on the wall using painter's tape or a cardboard template cut to the fixture's published dimensions.
- Mark the approximate projection if door clearance is relevant.
- Open doors and operate the garage door through its full movement to check clearance against the marked position.
- Walk toward the house from normal viewing directions — the street, the driveway, and the front walk — and evaluate the position from each angle.
This is a planning technique, not an electrical installation step. No wiring or mounting hardware is involved.
Damp vs. Wet Location: Check the Rating
- Damp-rated: suitable for sheltered locations subject to moisture or humidity — condensation, indirect moisture — but not direct rain or splashing.
- Wet-rated: suitable for locations exposed to direct rain, splashing, or direct water contact.
Do not assume outdoor suitability from a fixture's appearance or materials. Only the published location rating — stated in the manufacturer's product specifications — confirms suitability. Coastal environments may introduce additional corrosion considerations; verify with the manufacturer before purchasing.
Product Page Red Flags
When shopping for an exterior wall sconce, take note when any of the following are missing:
- No fixture dimensions — overall height, width, and depth are not listed.
- No projection dimension — how far the fixture extends from the wall is not stated.
- No backplate size — the mounting plate dimensions are not published.
- No location rating — damp or wet suitability is not stated.
- No installation instructions — or instructions are not available before purchase.
- Outdoor claims without a published rating — described as "outdoor" or "weather-resistant" without a stated location rating.
- Product images without scale context.
- No voltage information where relevant to the installation.
Missing information does not automatically mean poor quality. It means you have less information for planning a confident installation. If critical dimensions or ratings are absent, contact the manufacturer or seller before purchasing.
Light Output and Exterior Appearance
Useful exterior illumination is shaped by several factors: the fixture's published lumen output, light source position, fixture geometry and shade or lens design, beam direction, number of fixtures, and mounting position relative to the surfaces being illuminated.
Lumens measure light output. Wattage should not be treated as brightness. Use published lumens to compare fixtures — not wattage. There is no universal lumen target for exterior entries; the right output depends on the space, the fixture, and how many fixtures are used.
Installation: What to Check Before You Begin
Exterior wall sconce installation involves electrical work and, in many jurisdictions, requires a licensed electrician. Before beginning, verify:
- Existing junction-box location — it determines where the fixture can be mounted without additional electrical work.
- Backplate coverage — the fixture's backplate must fully cover the junction box.
- Fixture mounting compatibility — per the manufacturer's instructions.
- Voltage — verify the fixture's published voltage requirements against the installation.
- Manufacturer's installation instructions — read them fully before beginning.
- Location rating — confirm the fixture's published rating matches the actual installation conditions.
- Physical clearance — confirm all door, garage-door, and eave clearances before mounting.
If you have any doubt about the electrical work involved, engage a qualified electrician. This article does not provide wiring instructions, junction-box installation guidance, or live-circuit testing procedures.
Common Mistakes to Avoid
Using a single mounting number without checking fixture size. Always calculate where the top and bottom edges of the fixture will land.
Ignoring fixture dimensions entirely. Height, width, projection, and backplate size all affect whether a fixture fits the available wall space.
Ignoring projection. Width and height alone are not sufficient.
Ignoring door trim, transoms, and sidelights. Plan placement with the full door surround in mind, not only the door slab.
Selecting fixture size from photos only. Always check published dimensions before purchasing.
Assuming a covered porch means any fixture is suitable. A roof overhead does not confirm damp or wet suitability.
Comparing brightness by wattage. Use published lumens, not wattage.
Ignoring garage-door movement. A fixture must clear the door panel and all hardware through its full arc — not only when closed.
Failing to preview visual balance before installation. Use the painter's tape technique before committing to a position.
Frequently Asked Questions
How high should exterior wall sconces be?
There is no single correct height. Position depends on door height, fixture dimensions, junction-box location, available wall space, porch roof or eave height, and required clearances. Use those factors together for your specific installation — not a universal number.
Where should sconces go beside a front door?
The fixture centerline is often positioned in relation to the door height, but the exact position depends on door trim, transom windows, sidelights, house numbers, and the fixture's own dimensions. Measure the available wall space and fixture dimensions before deciding.
Should exterior lights be above or beside the door?
Both positions are used. The right choice depends on your entry's architecture and available mounting locations.
How high should garage wall lights be?
There is no formula that maps door size to fixture height. Check available wall space, door-movement clearance, and fixture dimensions.
Should I use one or two sconces at the front door?
Two fixtures are not always the better choice. The decision depends on wall width, fixture size, door configuration, and electrical locations.
How large should an exterior wall sconce be?
Work from the fixture's published height, width, and projection, and compare those dimensions to the available wall space before purchasing.
Can indoor wall sconces be used on a covered porch?
Not automatically. Only fixtures with a published damp or wet location rating — as specified by the manufacturer — are suitable for outdoor use.
Should exterior sconces line up with the top of the door?
Not necessarily. Fixture size, trim height, transom windows, and overall architecture all affect where the fixture reads best. Measure to the top of the full door surround — including trim and transom — and evaluate the fixture's footprint in that context.
How do I know if an outdoor sconce will interfere with my door?
Compare the fixture's published projection and proposed position with the complete swing path of the door — including any storm door if present. The painter's tape technique can help you visualize this before installation.
Does a covered porch need a damp-rated light?
Suitability must follow the fixture's published location rating and the actual exposure conditions — not simply the presence of a roof. A covered porch that receives wind-driven rain may require a wet-rated fixture.
Should garage lights be mounted above or beside the door?
Either can work depending on available wall area, architecture, and garage-door clearance. Fixtures above the door require careful clearance checks against the door panel, track, and hardware in motion.
What should I check before installing an outdoor wall light?
Verify: junction-box location, backplate fit, electrical box suitability, published voltage requirements, location rating, door and garage-door clearances, and the manufacturer's full installation instructions. Engage a qualified electrician for any work beyond a straightforward fixture swap.
Final Thoughts
Exterior wall sconce placement is a process of checking — not applying a single number. Door height, fixture dimensions, wall space, porch conditions, garage-door clearance, and outdoor rating all shape where a fixture should go and whether it is suitable for the location.
Start with the fixture's published dimensions and your wall's actual measurements. Use the painter's tape technique to preview the fixture's footprint before installation. Check clearances before committing. Verify the location rating before purchasing. Engage a qualified electrician if the work goes beyond a straightforward fixture replacement.
